AcuLink 810
Made to Gather, Collect & Aggregate Energy Data
The AcuLink 810 data acquisition server and gateway is designed to collect and aggregated data from up to 32 Meters and Sensors (via Modbus) in a remote or local facility. This meter/sensor specific data is then presented via a simple to read and monitor web interface. This units allows connectivity to 32 Modbus RTU devices via RS485 port & Additional 32 Modbus RTU devices via USB port.
Core Features
AcuLink 810 is an intelligent data acquisition server and gateway designed to collect aggregated energy, water, gas, or other utility data from multiple meters and field sensors in a facility. Compatible with all Accuenergy meters and third-party devices, it stores data locally until it is ready to be distributed to remote servers or controllers via an IP-based network. The built-in web interface makes it simple to monitor critical energy data from all connected devices, promoting real-time decision making and management.
- Auto-Discover BACnet-IP and BACnet-MS/TP – automatically devices on network
- SNMP Gateway – Convert connected devices to available SNMP devices for data center management
- Rapid logger - Log data in 1-second interval with 8GB of onboard memory
- AcuMesh support on AcuLink 810 (Wirelessly query meters with RS485)
- Ethernet gateway for Modbus RS485 and digital with Dual ethernet RJ45 port and WiFi communication channelsutput devices
- Embedded web-server with enhanced cybersecurity
Ordering Options
To order the correct specifications for this device, please select one from each of the following options
Select Device
- AcuLink 810-X – Standard Data Acquisition Server
- AcuLink 810-900 – Built-in 900MHZ AcuMesh
- AcuLink 810-868 – Built-in 868MHZ AcuMesh

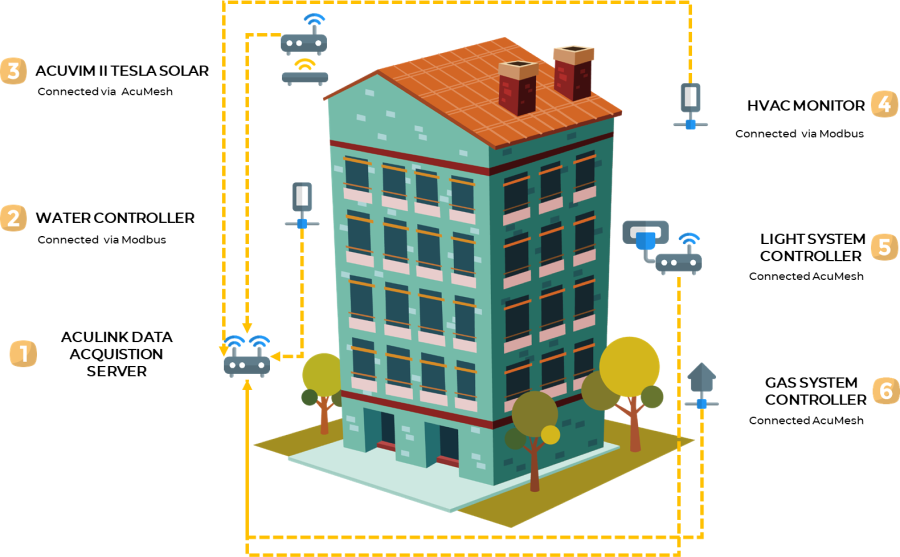

Product Use Case
In the below example use case, the AcuRev 2100 is connected monitoring sub-leasing Electrical and Gas systems within a commercial real estate environment.
Need More Details?
AcuLink 810 - Data Logging
Accuenergy AcuLink 810 Data Acquisition Server can collect any type of metering data from input meters or sensors including water, gas, steam and electricity. Data is collected and stored on its 8GB of onboard memory at user-defined intervals from 1 to 1,440 minutes. When ready pushed to a remote server • Multiple data-logger configurations for application-specific same unit logging • 8GB Onboard Memory for recording data-logging details • HTTP, HTTPs and FTP secure data uploading protocols
AcuLink 810 - Integration & Connectivity
Accuenergy AcuLink 810 Data Acquisition Server offers multiple connectivity and configuration options. This enables a wide range of support for any Modbus or BACnet meters, sensors and devices for a seamless integration into your network. If you have a connection point, the AcuLink is likely to offer support • Convert Modbus & BACnet devices to Modbus-TCP or Modbus-IP • Water, Gas, etc… via Pulse Counter • Modbus RTU Devices via RS485, USB or Ethernet
AcuLink 810 - Web Server & Interface
All aggregated data within the AcuLink 810 Data Acquisition Server can be locally managed and accessed via webpage on a direct Ethernet connection or WiFi network. This monitoring of offline status of a device and to monitor data from each metering point in real-time to evaluate for system anomalies • Connect and Install new meters / sensors rapidly using predefined templates • Configure and set alarm, notifications for each connected device • Hassle-free over-the-air Firmware and Template updates
AcuLink 810 - Network
The AcuLink 810 Data Acquisition Server provides multiple connectivity options to use with commercial/industrial grade meters and sensors inside a facility. The AcuLink aggregates data points to a central interface making it easier for operators to capture, manage and use business data • Daisy chain 64 Modbus RTU devices via RS485 and USB (32 each Connection Type) • Built-in WiFi and secured with the TLS 1.2 security protocols • Built-in point-to-multipoint wireless communication to Modbus-RTU devices via AcuMesh
