Flexible Current Transformers to Suit your needs
Accuenergy Current Transformers - Precision Engineered for Industrial Applications
Accuenergy's comprehensive range of current transformers delivers exceptional accuracy and reliability for demanding industrial power management applications. Custom-built in-house to exacting specifications, their CT portfolio includes revenue-grade split-core models (IEC 61869-2 Class 0.5), solid-core switchgear transformers, and innovative flexible Rogowski coils capable of measuring currents from 5A to 50,000A. Designed for Industrial Professionals Designed specifically for electrical engineers, energy companies, and industrial installations, Accuenergy CTs feature versatile output options including 333mV, 5A, 1A, and 80mA configurations to suit any metering requirement. Certified Performance With UL Listed certification, harmonics detection capabilities up to 20kHz, and accuracy ratings as tight as 0.15%, Accuenergy current transformers meet the rigorous demands of revenue metering, power quality analysis, and large-scale energy monitoring projects. Every CT is backed by technical expertise to ensure the right specification for your application.
Accuenergy's comprehensive range of current transformers delivers exceptional accuracy and reliability for demanding industrial power management applications. Custom-built in-house to exacting specifications, their CT portfolio includes revenue-grade split-core models (IEC 61869-2 Class 0.5), solid-core switchgear transformers, and innovative flexible Rogowski coils capable of measuring currents from 5A to 50,000A. Designed for Industrial Professionals Designed specifically for electrical engineers, energy companies, and industrial installations, Accuenergy CTs feature versatile output options including 333mV, 5A, 1A, and 80mA configurations to suit any metering requirement. Certified Performance With UL Listed certification, harmonics detection capabilities up to 20kHz, and accuracy ratings as tight as 0.15%, Accuenergy current transformers meet the rigorous demands of revenue metering, power quality analysis, and large-scale energy monitoring projects. Every CT is backed by technical expertise to ensure the right specification for your application.

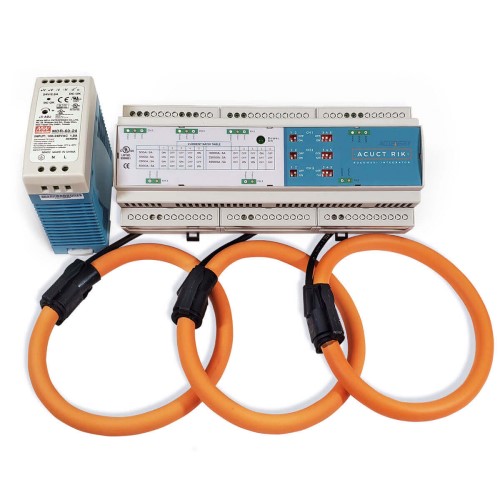

Rogowski Integrator Kit (RIK)
Accuenergy Rogowski Integrator Kit enables flexible current transformers to output 5A signals to a 5A input device such as a power meter. The Rogowski Integrator Kit provides a simple plug-n-play solution that is easy to setup in areas where spatial limitation occurs. Designed for industrial applications, the kit offers field-configurable CT ratios and works seamlessly with both 50Hz and 60Hz systems for maximum versatility.
- Available in 5A, mA, V, mV Output Integrator Kits
- Current sensing range from 2.5A to 50,000A to fit all systems
- Field-configurable CT ratios: 500A, 1kA, 2.5kA, 5kA, 10kA, 25kA, 50kA
- 100-240Vac Din-rail mount power supply
AcuCT Flex Series
Accuenergy's high specification line of flexible current transformers that measures AC current for power metering, power quality analysis and general use. The Rogowski coil provides a versatile solution when space is limited and requires a rope-style CT to physically wrap around a irregular shaped conductor or wire
- Wide current input range from 5A – 50,000A AC
- 404, 609, 914, 1193mm Lengths
- No additional power supply needed when used with Acuvim II
- Wide frequency range for harmonics and power quality
AcuCT R Series
The AcuCT R is Accuenergy's premium revenue grade split-core CT that offers the highest accuracy while supporting the widest range of rated outputs. It has be designed to be compact, simple and durable. The current transformer features a sturdy latch that locks the split-core CT in place using a press-open mechanism for quick installations without disconnecting cables
- Revenue grade accuracy: IEC 61869-2 Class 0.5sl
- Current input range: 5A – 5000A AC (depending on model)
- Push-open mechanism designed for quick, simple installation
- Multiple window shapes

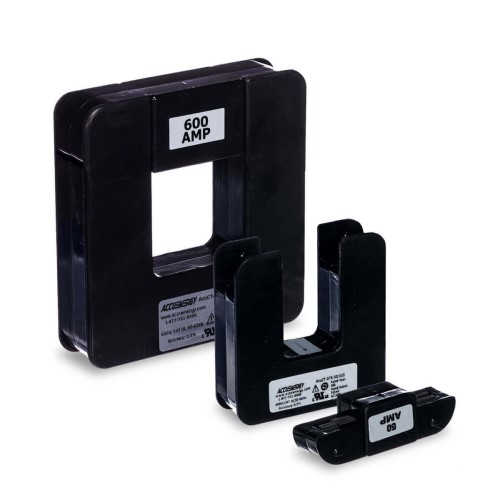

AcuCT mV Series
Accuenergy's compact & light-weight line of conventional 333mV output split-core current transformer for panel and device monitoring use. The 333mV output a low voltage for safe opening. The split-core CT is ideal for easy installation without disconnecting cables
- Revenue grade accuracy: IEC 60044-1 class 0.5s
- Current input range: 20A - 5000A AC (depending on model)
- Split core design for quick installation
- Safe, 333mV output

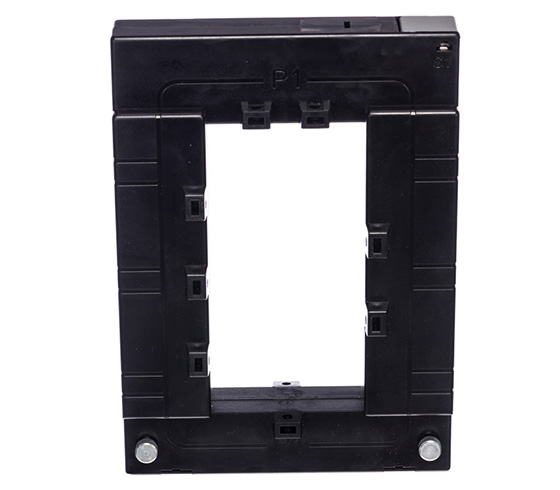

AcuCT 5A Series
Accuenergy's light-weight and compact 1A and 5A split-core CT output designed for industrial standard and high accuracy use. The AcuCT 5A current transformer is ideal for easy installation without disconnecting cables
- Revenue grade accuracy: IEC 60044-1 class 0.5s
- Current input range: 5A - 5000A AC (depending on model)
- Split core design for quick installation
- 1A or 5A industrial standard output

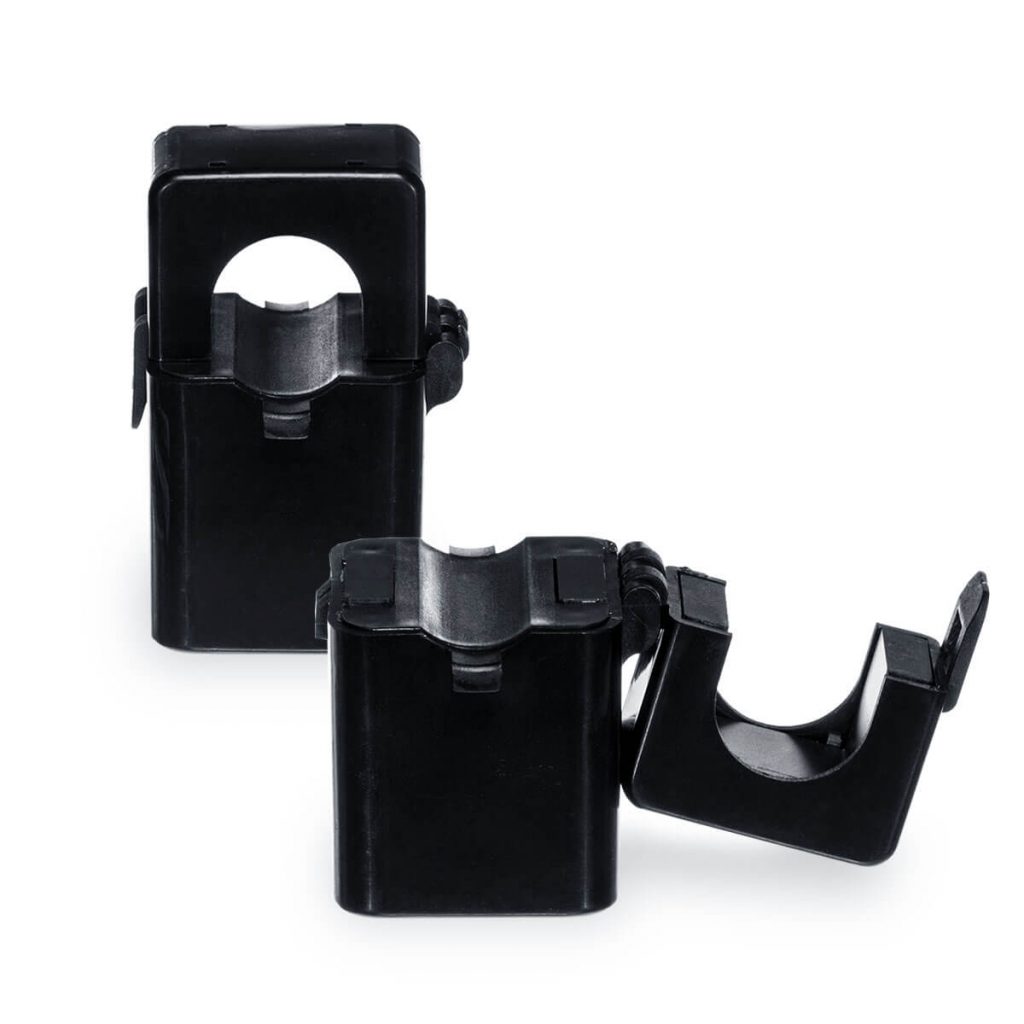

AcuCT Hinged Series
Accuenergy's ultra compact & light-weight hinged split-core current transformer is designed for installation on branch circuits within the electrical panel. This split-core CT is ideal for easy installation without disconnecting cables
- High accuracy: 0.5% from 10%-120% of rated current
- Current input range: 5A-630A AC (depending on model)
- Safe, 333mV output
- Hinged split core design for quick installation
