AcuMesh L-900
Say Goodbye to messy Wires and Hello to Point to Point communication
The Accuenergy AcuMesh L-900 Wireless Mesh Access Point connect any device to form a point to multi-point mesh network. The AcuMesh L-900 Wireless Mesh Access Point eliminates the usual wires in a RS485 installation by using a flexible and simple wireless communication solution. Small or large installations, the AcuMesh L-900 Wireless Mesh network is the perfect companion to your monitoring needs. With a wide array of applications, It is perfect for buildings management systems as well as systems that monitor energy flow, industrial automation and campus facilities
Core Features
The AcuMesh L-900 Wireless Mesh Access Point connect any device to form a point to multi-point mesh network. The AcuMesh L-900 Wireless Mesh Access Point eliminates the usual wires in a RS485 installation by using a flexible and simple wireless communication solution. Small or large installations, the AcuMesh L-900 Wireless Mesh network is the perfect companion to your monitoring needs. With a wide array of applications, It is perfect for buildings management systems as well as systems that monitor energy flow, industrial automation and campus facilities. The robust mesh topology ensures reliable communication even in challenging RF environments, automatically routing data through multiple paths. Easy to deploy and configure, it reduces installation costs while maintaining secure encrypted communications for industrial-grade performance and scalability across extensive monitoring networks.
- Creates a wireless mesh network
- Automatic connection without any configuration or software
- Compatible with any protocols: e.g. Wireless Modbus RTU, Profibus, DNP 3.0 etc...
- Highly secure 128-bit Advanced Encryption Standard (AES)
- 300m Indoor / 6.5km Outdoor distances in a single hop
- Each transceiver acts as an extension point for the network allowing for a longer range of communication
Ordering Options
To order the correct specifications for this meter, please select one from each of the following options
Select AcuMesh Unit
- ACUMESH-K (Transceiver with 900MHz Frequency, Surface Mount)
- ACUMESH-L-900 (Transceiver kit with 900MHz Frequency, DIN-Rail or Wall Mount.)
Product Use Case

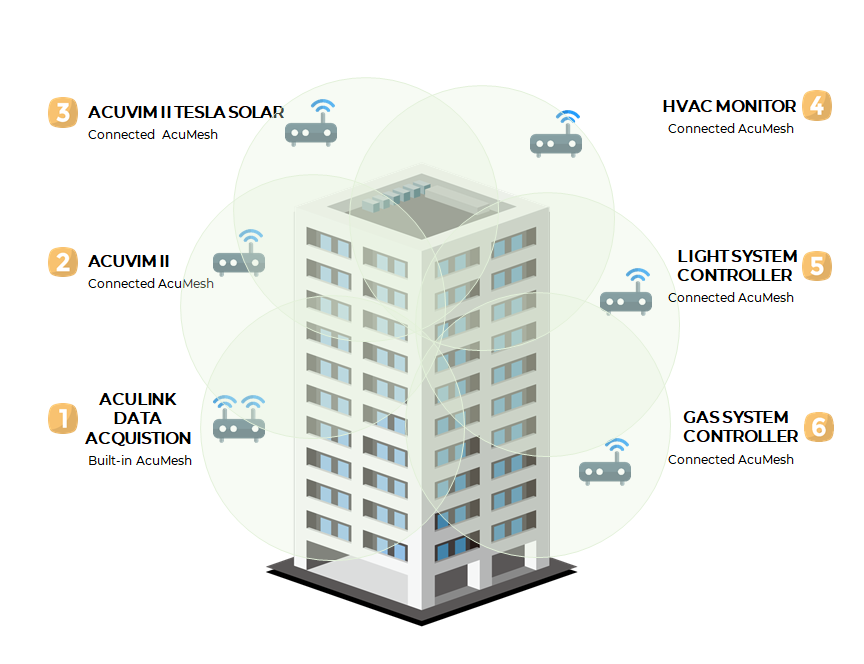

In the below example use case, the AcuMesh L-900 is connected to individual monitoring components that creates a secure mesh network and that is consolidated through the Aculink Data Acquistion server. This greatly eliminates the need for the installation of traditional, hard-wired communication lines, saving money, time, and labour while also reducing the challenges of retrofit installations. The self-healing wireless architecture automatically adapts to changing site conditions, maintaining communication reliability without manual intervention. Perfect for distributed installations where cable routing is difficult or cost-prohibitive, the AcuMesh system scales effortlessly from small projects to large industrial complexes. Each node acts as both a data source and repeater, extending network coverage organically.
Need More Details?
Mesh Wireless Network
AcuMesh devices maintain all advantages of a standard RS485 network but without the messy wires. Each RS485 device connects directly to an AcuMesh transceiver which enables point to point device communication • Supports all RS485 communication protocols (Wireless Modbus RTU, DNP 3.0, Profibus etc…) • No messy wires to run and maintain • Device to device communication both indoors and outdoors
Serial vs Wireless Mesh Network
Serial networks require a devices daisy chain topology increasing the budget and lifecycle of the project. Ongoing maintenance and difficulty in upgrades or modifications often mean large expenses and difficult projects • Mesh Networks have reduce network implementation cost vs wired networks • Flexible network reducing infrastructure dependency • Faster development cycles by eliminating wires
Wireless Modbus-RTU Over RS485
The AcuMesh wireless RS485 solution is designed to deliver wireless communications to energy meters or other devices that use Modbus-RTU over RS845. AcuMesh eliminates the need for the installation of traditional, hard-wired communication lines, saving money, time, and labour while also reducing the challenges of retrofit installations.
