AcuPanel 9100
Pre-Wired and Ready for the Elements

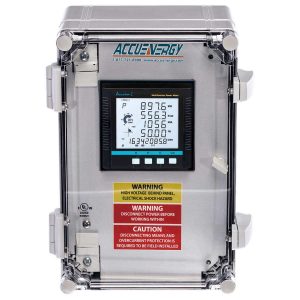

AcuPanel 9100 Series Pre-Wired Power and pre-configured power meter solutions are ready to the harsh elements of the Australian outback. Specially build to support ACUVIM (II and 3 models) these are factory tested for quality before shipment to ensure water/sun proof operation. The pre-configured panel comes ready to use in a durable and watertight NEMA 4 panel can stand up to the harsh installations in environments our customers expect and need.

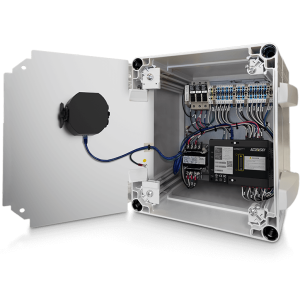

Pre-mounted and wired parts including fuses, shorting and terminal blocks
Core Features
The AcuPanel 9100 is a series of convenient pre-wired power and energy panel meter solutions designed for installation near an electrical distribution panel or in harsh environments. Available in several standard configurations, the factory pre-wiring greatly reduces installation time and frustrating wiring errors that can cause inaccurate data. Every AcuPanel is quality tested to ensure years of dependable use.
- Superior level of protection from extreme environments
- Pre-wired ACUVIM Power Meters
- Available panel materials: NEMA 3-rated* steel panel for indoor applications or NEMA 4X-rated for outdoor conditions
- Terminal blocks for current transformer and also voltage inputs
- Durable enclosures provide high tolerance for external force with well protection
- 200 x 300 x 186mm dimensions
Ordering Options
To order the correct specifications for this pre-configured panel, please contact us to discuss the following components:
- Pre-Wired Panel Material
- Accuenergy Meter Model (Acuvim II, Acuvim , AcuRev, AcuDc)
- Current Input – Power Supply
- Communication Module
- 2nd I/O Option
- 3rd I/O Option
