AcuRev 2100
Next generation multi-circuit submeter with easy SnapOn CT technology

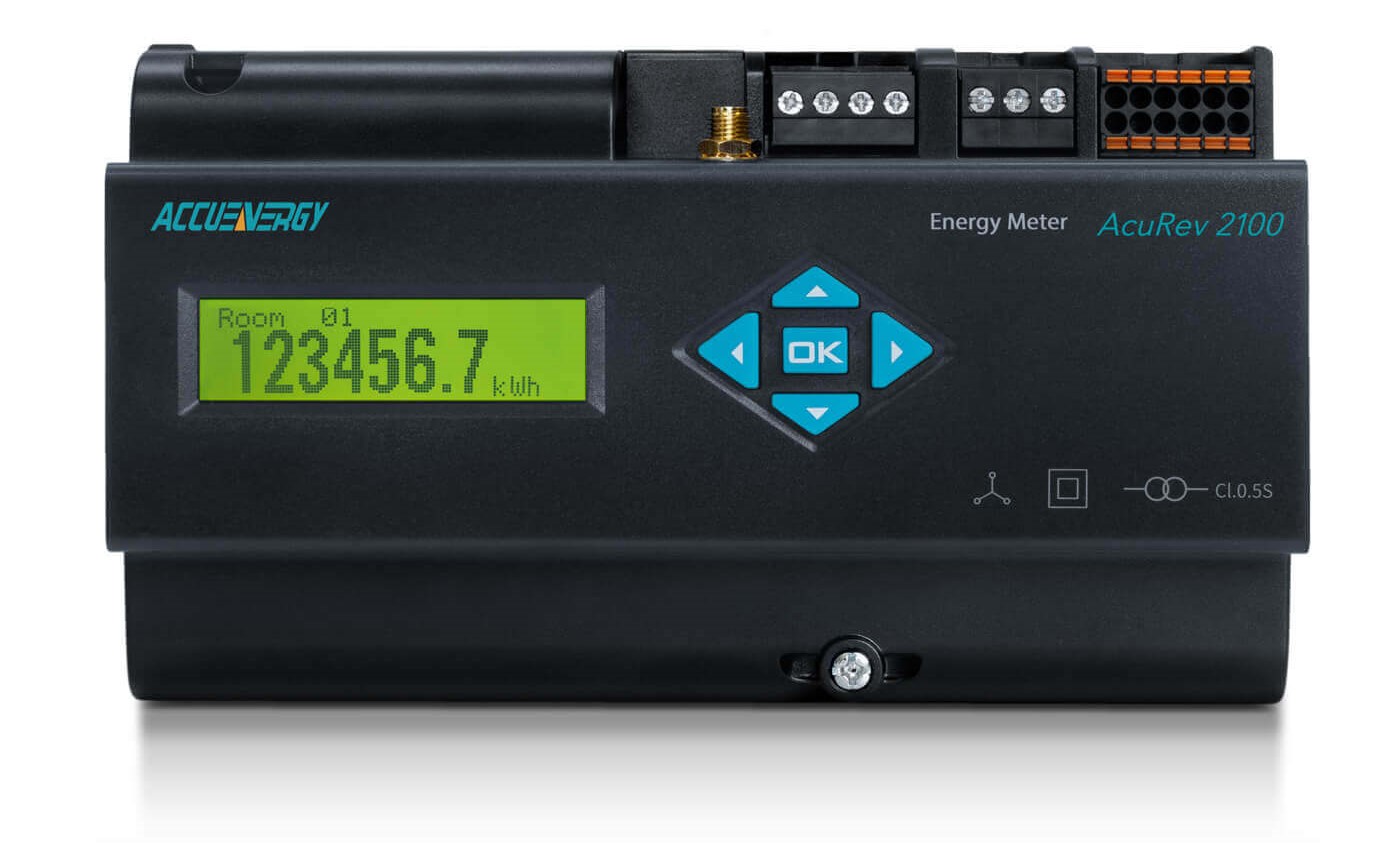

The Accuenergy AcuRev 2100 Multi-Circuit Submeter is the next generation multi-circuit submeter designed to measure up to 18 single-phase or 6 three-phase circuits using SnapOn CT technology for quick and easy installations in high-density, multi-point applications. Reliably monitor real-time energy consumption and perform power quality analysis in commercial, industrial, and residential multi-tenant energy management systems
Core Features
The AcuRev 2100 Multi-Circuit Submeter is a compact and robust metering solution to multi-tenant submetering/billing for high-density metering applications with easy SnapOn CT technology. The unit performs real-time metering, measures energy consumption, multi-tariff time-of-use (TOU) and monitors power quality for 18 single-phase circuits or 6 three-phase circuits from a single point. Advanced WEB2 communication options including Modbus-RTU via RS485, ModbusTCP, BACnet IP, SNMP and data post via Ethernet and Wi-Fi and I/O to provide for extensive reliable and interoperable data communications.
- Measure 18 single-phase or 6 three-phase circuits simultaneously to reduce need for multiple metering points
- SnapOn CT technology reduces installation and maintenance times to ensure polarity errors are eliminated
- Built-in WEB2 module to help meet all communication protocol needs
- 8GB non-volatile memory for storing metering data
- Programming and terminal tamper-proof seal
- Optional cloud-based data storage with AcuCloud
Ordering Options
To order the correct specifications for this meter, please select one from each of the following options
Select Meter
- AcuRev 2100
Select Current Input
- mV: 333 & RIK Coil
- mA: 80 & 100(mA) CT
Select Comms Input
- 485: Serial RS485
- WEB2: Dual Ethernet, WiFi and Serial RS485
Ordering Example: AcuRev-mV-WEB2 (AcuRev-2100, suited for 80mA Current Input with WEB2 communication functions)
Product Use Case
In the below example use case, the AcuRev 2100 is connected monitoring sub-leasing Electrical and Gas systems within a commercial real estate environment.
SnapOn CT Connections

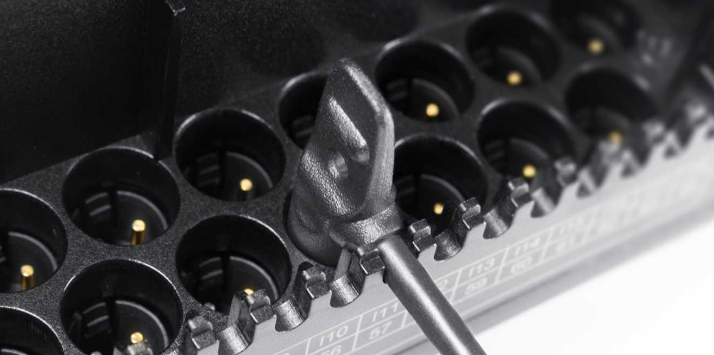

Accuenergy has designed an innovative CT technology that allows any 80mA, 100mA or 333mV current transformer to simply plug into the AcuRev 2100 Multi-Circuit Submeter without any wiring configuration. Twenty SnapOn CT connectors are included with the AcuRev 2100. Simply attach the SnapOn CT to a current transformer and then plug it to the AcuRev 2100 meter for a fast and convenient installation experience.
- Simply plug in current transformers to setup and configure your metering system
- Reduce common mistakes and time troubleshooting issues such as reverse polarity errors
- Increase monitoring uptime during routine maintenance and upgrade
- 20 SnapOn connector heads are included with the AcuRev 2100, and also works with any third-party CT with secondary rated options 80mA, 100mA, or 333mV
Need More Details?
AcuRev 2100 Multi-Circuit Submeter - Protocol Support
• Modbus TCP/IP • BACnet IP • DNP 3.0 v2 • IEC 61850 2nd Edition • HTTPs post • sFTP server
AcuRev 2100 Multi-Circuit Submeter - Supported Metering Variables
• Energy – Active (kWh), reactive (kVARh) and apparent (kVAh)
• Compliance – ANSI C 12.20 class 0.5; IEC62053-22 Class 0.5s
• Real-time RMS Metering – Line and phase voltage,current for each circuit
• Power and Power Factor – Active (P), Reactive (Q), Apparent (S), Power Factor
• Demand and peak demand – Power and current demand for total and each circuits, 0-30 minute configurable window
AcuRev 2100 Multi-Circuit Submeter - Alarms and Limits
• Ten limit alarms can be assigned to draw attention to various conditions • The alarm function is designed to effectively alert and protect systems by triggering notifications, such as a light or buzzer, and automatically shutting down equipment • For example, the alarm can be configured for peak demand, current, or power quality
AcuRev 2100 Multi-Circuit Submeter - Connectivity
• 18 Digital Input – Poll and collect gas and water metering data form your facility
• 6 Digital Outputs – Send out pulses on energy data to energy management system for data collection.
• 2 Relay Outputs – Easily integrate other metering data and control in a single unit.
• Network – Dual Ethernet Ports supporting the daisy chaining up to 32 devices with RSTP
• Network – Wifi connectivity as both a wireless access point or as a wireless client
AcuRev 2100 Multi-Circuit Submeter - Data Logging
• Real-time – Energy metering, power quality and I/O data can be stored in non-volatile onboard memory
• 15-minute – On-board capacity for logging energy data at 15 minute intervals for 3-phase systems is 3.2 years
• Data Usage – Logged information can be retrieved via serial connection or remotely by Ethernet as Excel, CSV and text format for historical trending and system analysis
AcuRev 2100 Multi-Circuit Submeter - Multi-Tariff Time-of-Use (TOU)
Segment your peak kilowatt hour (kWh) usage: • 4 tariffs (sharp, peak, valley, normal) • 14 schedules • 14 segments • Set Weekends & 10 year holiday
