Acuvim II
The Gold Standard for Power & Energy Measurement
The Acuvim II Power Monitoring Meter is a quality engineered multi-function power & energy meter. It provides a simple robust solution for power monitoring, power quality analysis, kWh metering, system integration, controlling power distribution systems & other specialty applications
Core Features
The Acuvim II is able to be updated and flashed with custom firmware to ensure compatibility with your environment. This is normally completed at the factory during manufacturing
- Revenue grade: ANSI C12.20 class 0.1 & IEC 62053-22 class 0.1s
- High Resolution Frequency Measurements - 0.001Hz
- High Speed update rate - less than 20ms
- Dual Ethernet Ports with both RSTP bridge daisy-chain mode & separately configurable network with AXM-WEB2 & AXM-WEB2-D modules
- Built-in MODBUS RTU via RS485 port
- 8GB Datalogging and Event Storage
- Multiple CT output options: 5A/1A, 333mV and Rogowski Coil, 80ma/100mA/200mA
Ordering Options
To order the correct specifications for this meter, please select one from each of the following options
Select Meter
- Acuvim IIR
- Acuvim IIW
Select Mount
- D: LCD Display
- M: DIN-Rail Mount (opt. display avail.)
Select Current Input
- 5A: 5/1 (A)
- mV: 333 & RIK Coil
- mA: 80/100/200 (mA)
Select Power Input
- P1V3: 100~415Vac, 50/60Hz, 100~300Vdc
- P2V3: 20~60Vdc
Ordering Example: Acuvim-IIR-D-5A-P1V3 (Acuvim IIR, with LCD Display, suited for 5A/1A Current Input and with 100-415Vac @60Hz)
Product Use Case
In the below example use case, the Acuvim II is connected to Tesla Solar arrays to moniter power generation. For ease of deployment, these meters are separately connected to AcuMesh network devices that create a mesh network for sending and reporting data to the AcuLink data acquistion server.
Enhance with Add on Accessories
Enhance this meter with available I/O Expansion card, Web2 Module, Current Transformers and the special AcuPanel prewired solution to met the challenges of the harsh Australian outback
IO Modules

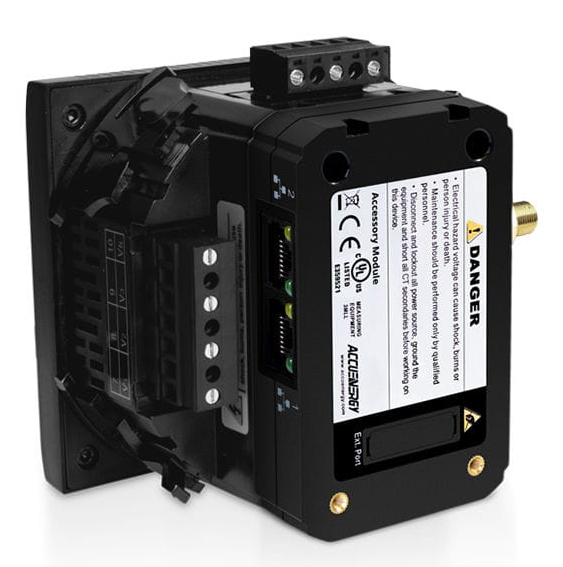

AXM-WEB2 Comms Module
DIN Rail Mount
Need More Details?
Acuvim II Power Monitoring Meter - Metering Specifications
• Voltage V1, V2, V3, Vlnavg, V12, V23, V31, Vllavg • Current I1, I2, I3, In, Iavg • Power P1, P2, P3, Psum • Reactive Power Q1, Q2, Q3, Qsum • Apparent Power S1, S2, S3, Ssum • Frequency F • Power Factor PF1, PF2, PF3, PF • Energy Ep_imp, Ep_exp, Ep_total, Ep_net, Epa_imp, Epa_exp, Epb_imp_Epb_exp, Epc_imp, Epc_exp • Reactive Energy Eq_imp, Eq_exp, Eq_total, Eq_net, Eqa_imp, Eqa_exp, Eqb_imp, Eqb_exp, Eqc_imp, Eqc_exp • Apparent Energy Es, Esa, Esb, Esc Demand Dmd_P, Dmd_Q, Dmd_S, Dmd_I1, Dmd_I2, Dmd_I3 • Four Quadrant Powers
Acuvim II Power Monitoring Meter - Monitoring Specifications
• Power Quality • Voltage Harmonics 2nd to 63rd and THD • Current Harmonics 2nd to 63rd and THD • 400Hz type,only support 2nd to 15th • Voltage Crest Factor • THFF (TIF) • Current K Factor • Voltage Unbalance Factor U_unbl • Current Unbalance Factor I_unbl • Max/Min Statistics with Time Stamps
Compatible Communication Protocols
• Modbus RTU Protocol via RS485 • DNP3 Level 2 over IP • IEC 61850 • Ethernet (Modbus TCP, HTTP, SMTP, SNTP, HTTPs Post, FTP) Profibus DP • BACnet IP, BACnet MS/TP • Dual RS485 Communication Ports • Wi-Fi and Ethernet dual communication (Modbus TCP, HTTP, SMTP, SNTP, HTTPs Post, FTP) • Mesh wireless slave module 868Hz or 900Hz
Power Quality Event / Data Logging
Acuvim IIR/IIW offers 3 assignable historical logs where the majority of the metering parameters can be recorded. The onboard memory is up to 8 MB and each log size is adjustable. A real time clock allows for any logged events to be accurately time stamped. With AXM-WEB2 module added, the memory size expands to industry-leading 8GB memory with 1-second interval datalogging. When a power quality event happens, such as voltage sag and swell, etc., Acuvim IIW will record the timestamp and the triggering condition of the event. It can save up to 50, 000 power quality events
I/O Expansion Modules
The E-module® technique was adopted for its flexibility and easy expansion of the I/O function of Acuvim II. A maximum of 3 modules can be used for one meter. Digital input, digital output, pulse output, relay output, analog input and analog output are provided by I/O option modules
Time of Use (TOU)
Users can assign up to 4 different tariffs (sharp, peak, valley and normal) to different time periods within a day according to the billing requirements. The Acuvim IIE meter will calculate and accumulate energy to different tariffs according to the meter’s internal clock timing and TOU settings
Waveform Capture
Acuvim IIW can record 100 groups of voltage and current waveforms. It provides the waveform record of 10 cycles before and after the triggering point. It also supports a settable triggering condition. COMtrade wavefrom file format is available from waveform capture
Automatic Frequency Adaptation
Rated frequency is adjusted automatically to local frequency such as 50Hz or 60Hz. The same meter can be used in countries with different electrical frequencies.Compatible with different current transformers such as 5A, 1A, 80mA, 100mA, 200mA, 333mV output CT and Rogowski coils
