Smart Electrical Gateways and Servers

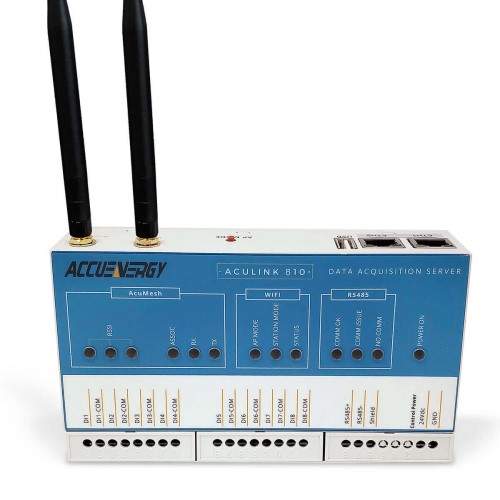

AcuLink 810 Data Server
The AcuLink 810 is a data acquisition server and gateway designed to collect aggregated energy data from up to 32 Modbus meters and field sensors in a facility such as water, gas and electricity. This information is locally stored until it is ready to be distributed to remote servers or controllers via an IP-based network. AcuLink 810 provides an easy solution to manage, collect and store data from all connected metering points from a single web interface
- Post or push data using multiple formats for integration with existing software or systems
- Browser accessible web interface facilitates easy remote data access
- 8GB datalogger onboard memory
- Dual Ethernet ports for simple, RSTP compliant network connectivity

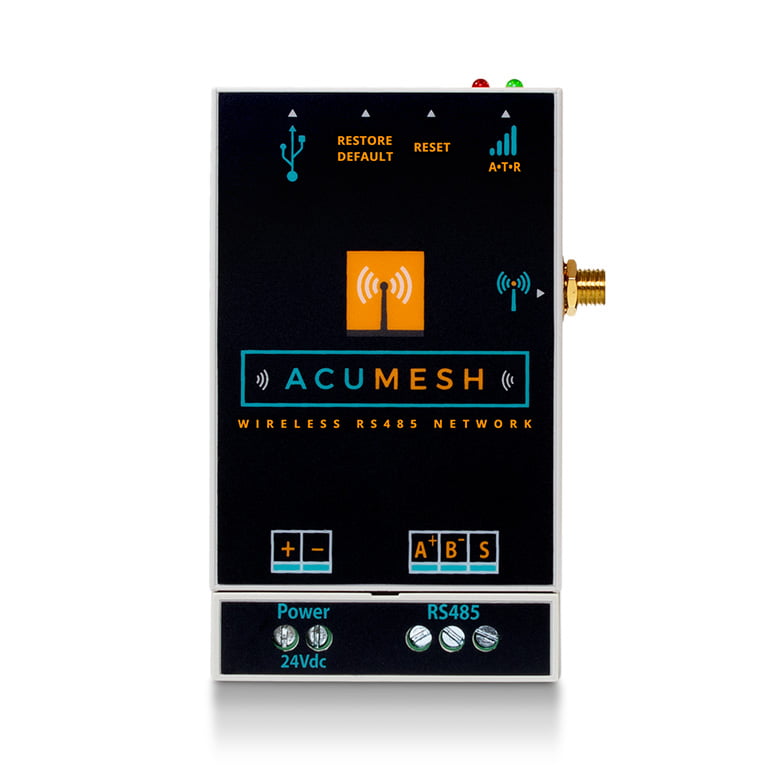

AcuMesh
The Acumesh Wireless RS485 connects any device with a RS485 port to form a point to multi-point mesh network. This gateway is ideal for buildings and systems that monitor energy flow, industrial automation and campus facilities. AcuMesh transceiver eliminates the usual wires in a RS485 installation by using a flexible and simple wireless communication solution
- Creates a wireless mesh network
- Connects to meters, sensors, or any other device with an RS485 port
- Wide range: 1000ft (305m) / 4 miles (6.5km) outdoors in a single hop
- 128-bit Advanced Encryption Standard (AES) provides added security
